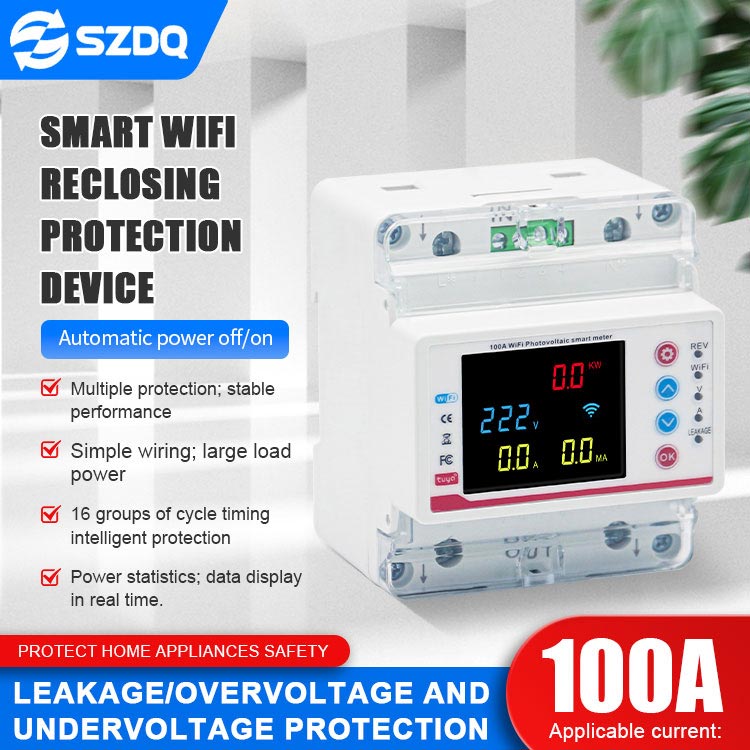

Automatic power off/on
Multiple protection; stable performance
Simple wiring; large load power
16 groups of cycle timing intelligent protection
Power statistics; data display in real time.
Protect Home Appliances Safety
Leakage/Overvoltage And Undervoltage Protection
100A Applicable current
Safety first
Efficient and practical
Short Circuit Protection
Electricity Statistics
Earth Leakage Protection
Time Switch
Wireless Remote Control
Retardant

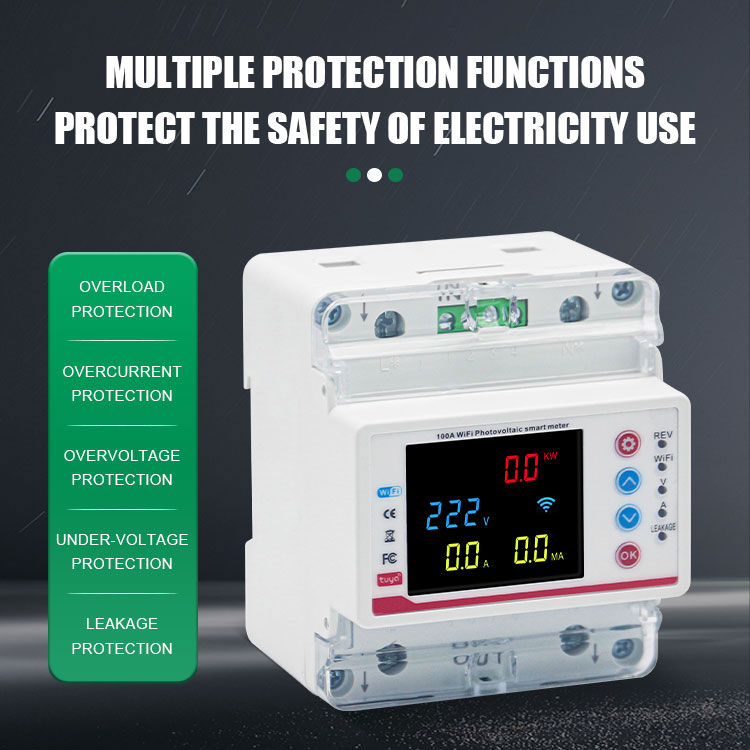

Leakage Protection
Under-Voltage Protection
Overcurrent Protection
Overvoltage Protection
Overload Protection

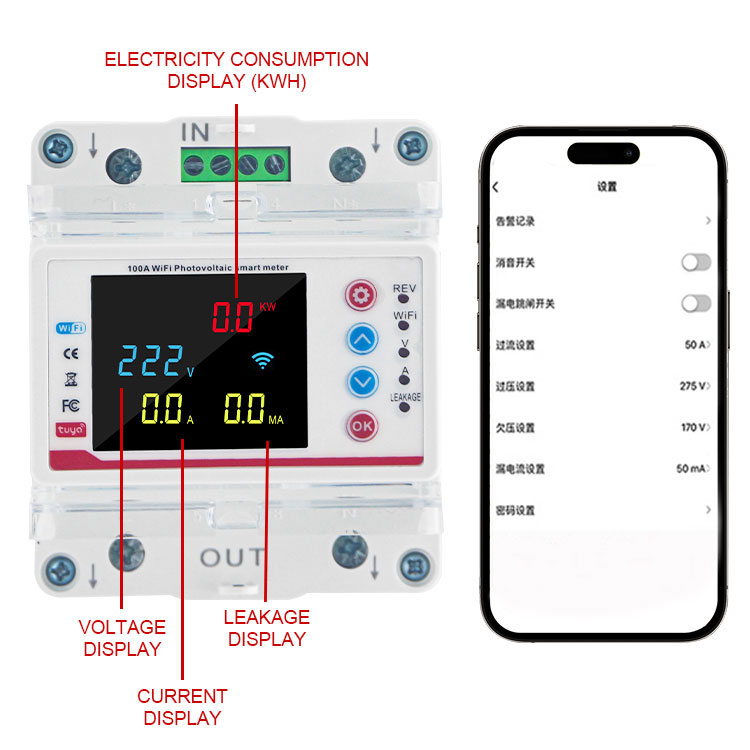

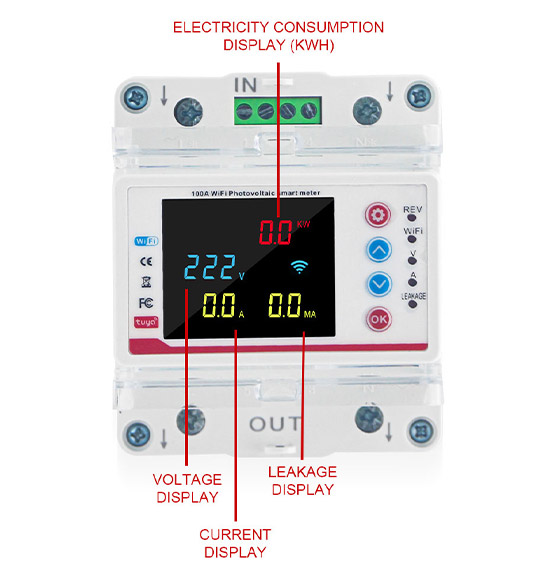

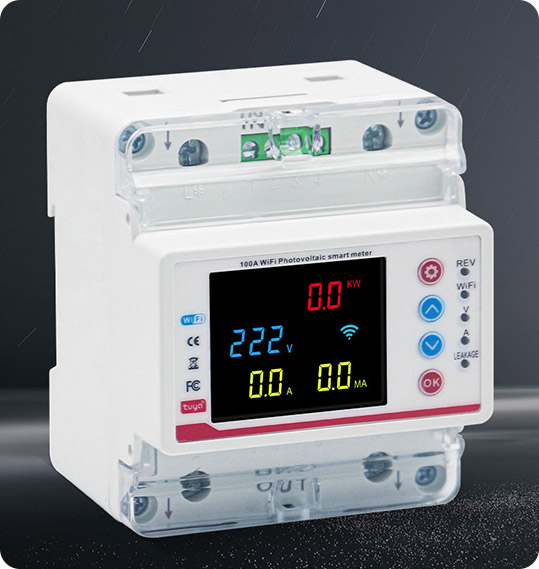

Power, voltage, current, and leakage value are displayed on the same interface without switching. The power display 1 is in decimal. The unit is 1kw/h. The voltage display has no decimal point. The unit is v; the current display has one decimal place.
Open the mobile app store to download (Doodle Smart). After successful installation, enter your account to log in. Click on Manual Add select Energy Saving, and then select Circuit Breaker.
The mobile phone will automatically search for the wifi name, then enter the wifi password and click next.
Reset configuration. Long press the network key to guide the wifi indicator to flash. Click on the mobile phone to confirm the indicator is flashing. click next, then it will be quick configuration, and a pop-up will appear after successful configuration, this name can be set by yourself.
The original password for the point fee input is oooo. Then the fee management, prepaid function switch will pop up. function is only applicable to the landlord. The electricity quantity difference is multiplied by the electricity price, which is the electricity charge payable. It will automatically cut off power after. Recharge records, the remaining electricity quantity is cleared, that is, the electricity meter is cleared, please use it with caution.
Click on the switch to turn the protector on and off.
Timing can be set by yourself, it's just a matter of when to turn on and when to turn off.
