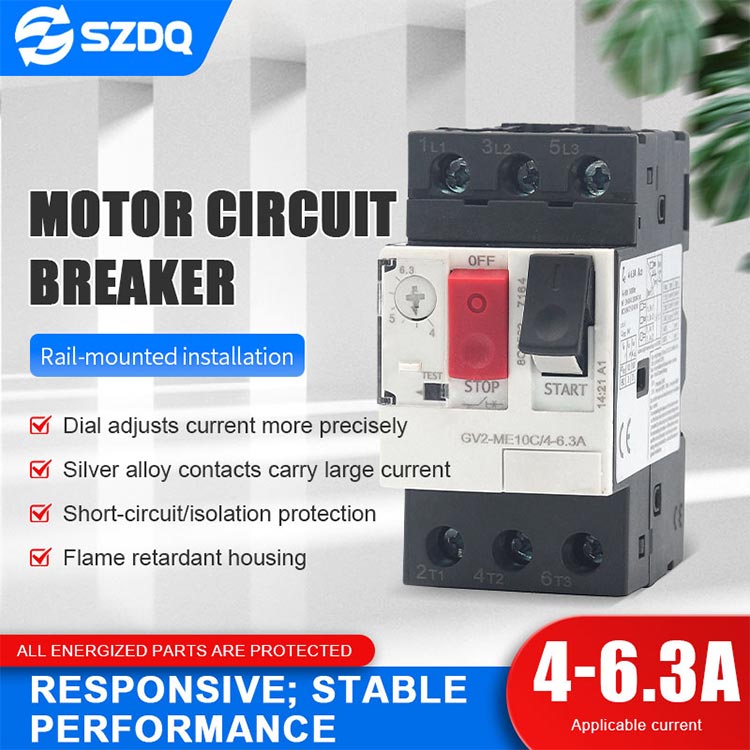

Rail-mounted installation

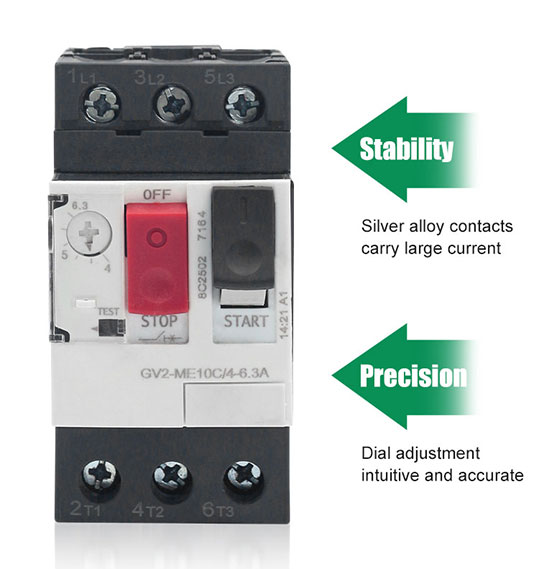

Dial adjusts current more precisely
Silver alloy contacts carry large current
Short-circuit/isolation protection
Flame retardant housing
All energized parts are protected
Responsive
Stable performance
4-6.3A Applicable current

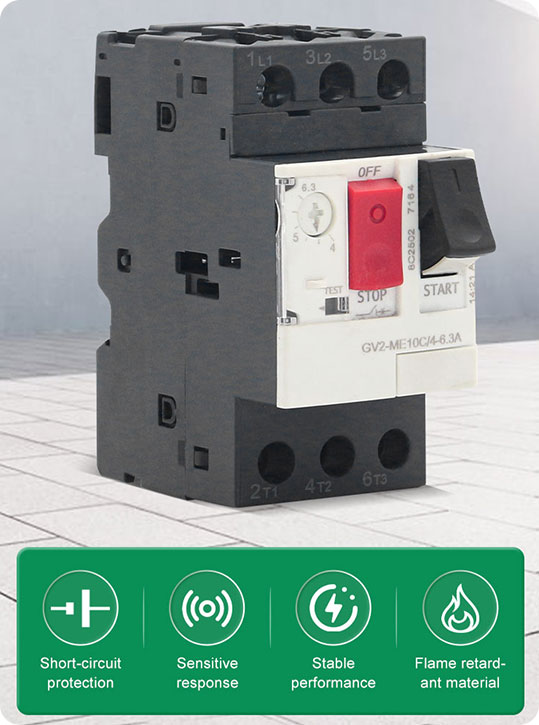

GV2 Series
Short-circuit protection
Sensitive response
Stable performance

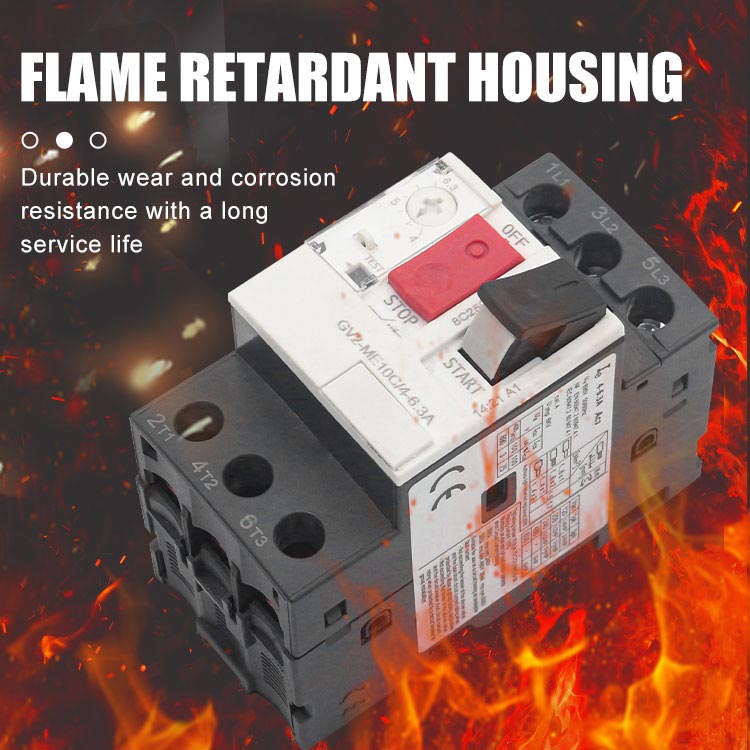

Flame retard-ant material

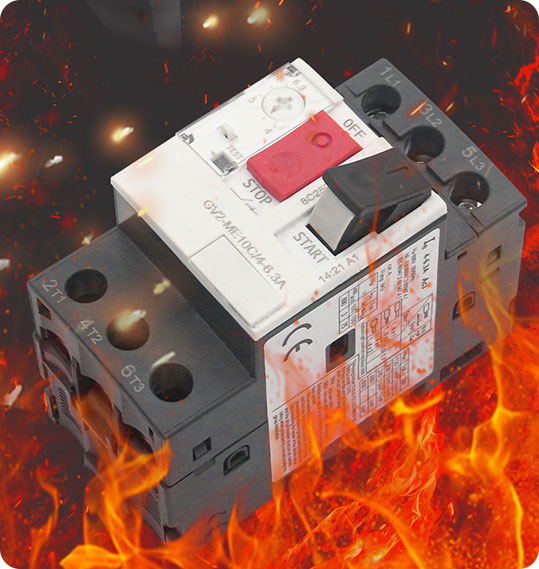

The shell is made of high-quality flame retardant material, wear-resistant, corrosion-resistant, and has a long service life

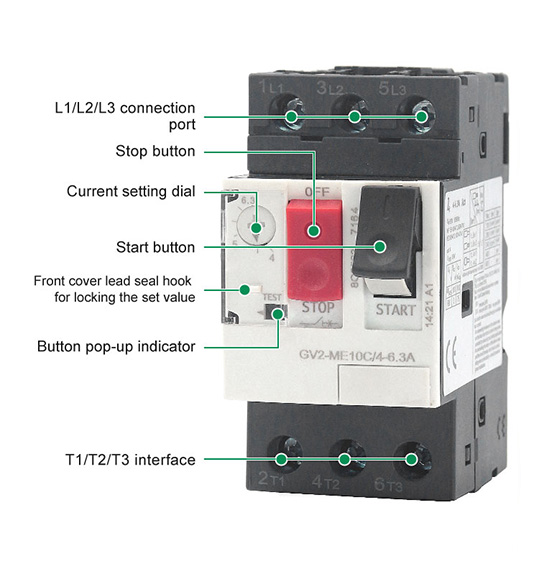

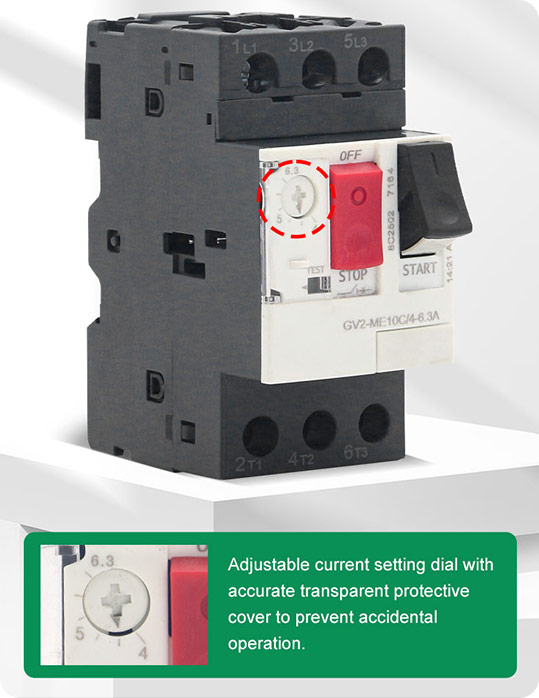

Adjustable current setting dial with accurate transparent protective cover to prevent accidental operation.

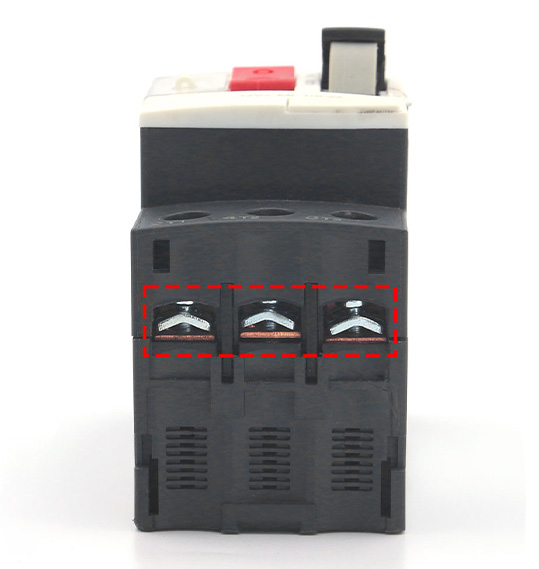

Silver alloy contacts are used, which have strong conductivity and are more stable for large current.

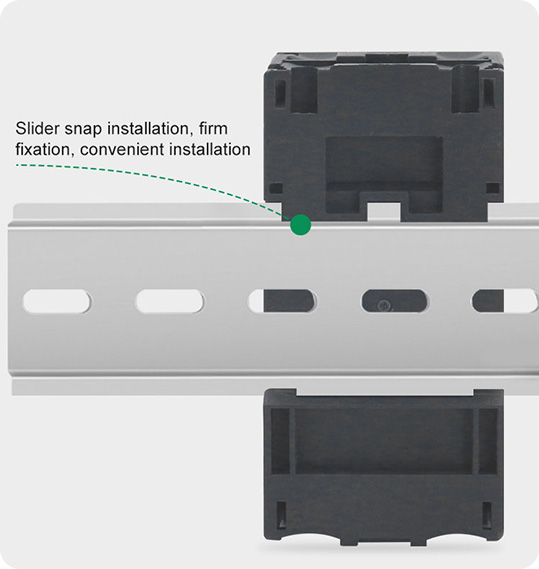

Slider snap installation, firm fixation,convenient installation
Security at hand, lighting up a warm life
| Product model | Current regulation range | Tripping current | Matching accessories | Control mode |
| GV2-ME01C | 0.1-0.16A | 1.5A | Dress contact point GV-AE1 GV-AE11 GV-AE20 |
Button control |
| GV2-ME02C | 0.16-0.25A | 2.4A | ||
| GV2-MEO3C | 0.25-0.4A | 5A | ||
| GV2-ME04C | 0.4-0.63A | 8A | ||
| GV2-MEO5C | 0.63~1A | 13A | Side-mounted contact point GV-AN11 GV-AN20 |
|
| GV2-MEO6C | 1~1.6A | 22.5A | ||
| GV2-ME07C | 1.6-2.5A | 33.5A | ||
| GV2-MEO8C | 2.5~4A | 51A | Side-mounted contact (fault indication) GV-AD1010 GV-AD1001 GV-AD0110 GV-AD0101 |
|
| GV2-ME10C | 4-6.3A | 78A | ||
| GV2-ME14C | 6-10A | 138A | ||
| GV2-ME16C | 9-14A | 170A | ||
| GV2-ME20C | 13-18A | 223A | ||
| GV2-ME21C | 17-23A | 327A | ||
| GV2-ME22C | 20-25A | 327A | Waterproof sealed box GV2-MC02 |
|
| GV2-ME32C | 24~32A | 416A |
